Esoteric A-100

Esoteric A-100 Modello celebrativo 25 anni
Finale di potenza stereo a valvole in push-pull. Potenza 2 x 50W su 8 ohm. Valvole finali 4 x KT88. Circuito VBS, bias autoregolante per la massima linearità. Circuito ZVS, sistema di controllo tensione zero, per la massima stabilità di tensione. Trasformatori di output su specifica Esoteric. Pre passivo per 3 ingressi gestibili da telecomando in dotazione.



Output power Minimum 45W+45W (1KHz, 4ohms/8ohms)
Frequency response 20Hz to 60kHz (at 1W, 8ohms, +1/-3dB)
S/N ratio more than 98dB (JEITA)
Input sensitivity 400mVrms/45W (8ohms)
Input impedance 10kohms (Line in), 1Mohms (Direct in)

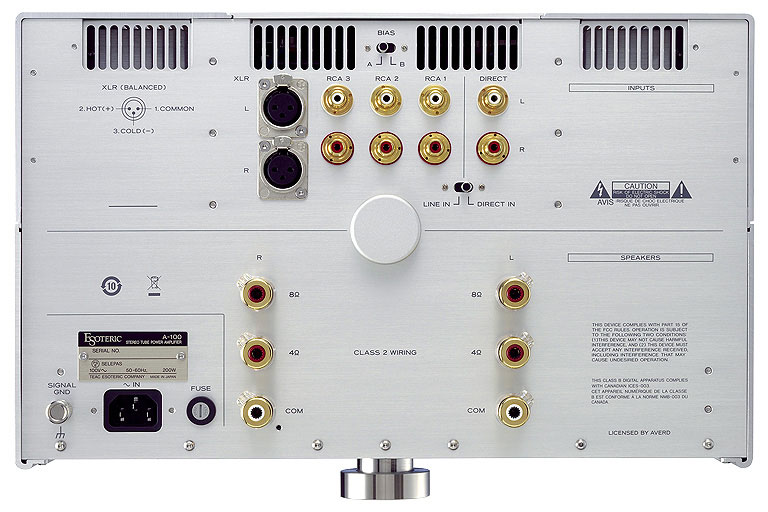

Input terminals RCA ×3
XLR ×1
Output terminals WBT-0710Cu pole terminals ×1 pair (4ohms/8ohms)
Tubes First stage: 12AT7 ×2
Drive stage: 12AU7 ×4
Bottom stage: KT88 ×4
General Power supply AC 230V 50Hz
AC 120V 60Hz
Power consumption 200W
External dimensions (W×H×D) 382×252×486 mm
(15-1/16×9-7/8×19-1/16 “)
Weight 40kg (88lbs)
Design and specifications are subject to change without notice.
This product is available in three different power supply variations shown in the chart above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.
