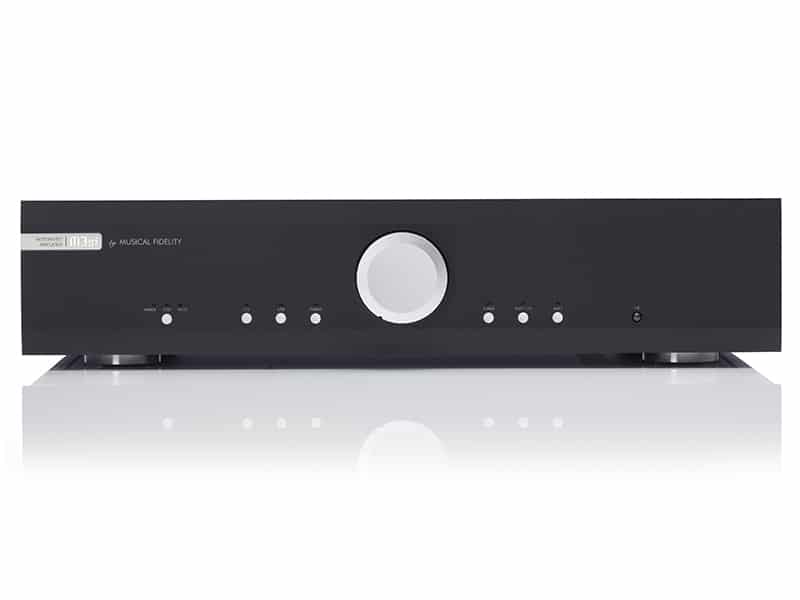

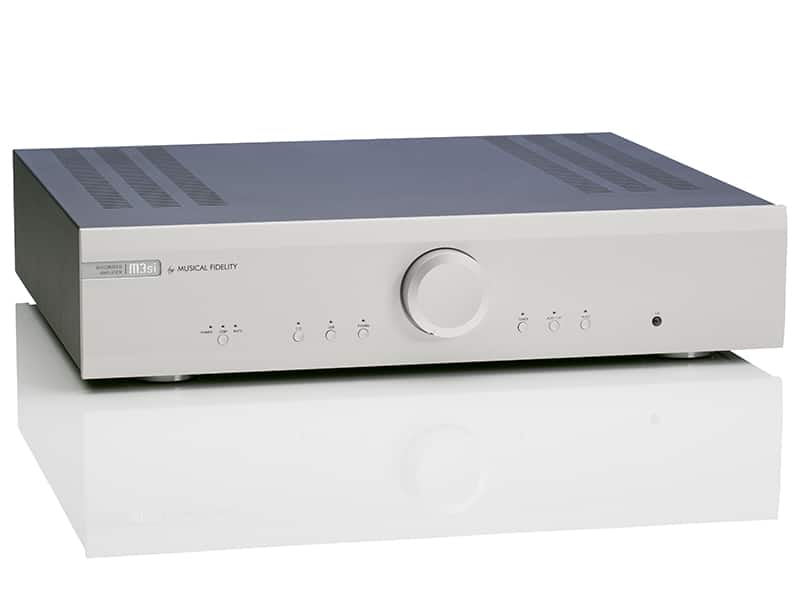

Musical Fidelity – M3si

Amplificatore integrato.

Potenza 2x85W su 8ohm. Layout circuitale SMD. 4 ingressi linea. Ingresso USB-B asincrono con risoluzione 24bit/96KHz. Ingresso Phono MM. Uscita pre out.

Scarica le specifiche (PDF)

Descrizione

Specifications

Amplifier
Power output: 85 Watts per channel into 8 Ohms
THD(+ noise): <0.014 % typical, 20Hz to 20 kHz
Signal to Noise Ratio: >98dB ‘A’-weighted
Frequency Response: +0, –0.1dB, 10Hz to 20 kHz

Inputs
4x Line Level RCA / Phono
1x USB type ‘B’ connector – Asynchronous data stream at up to 24-bit/96kHz
1x MM Phono input

Phono Input
Sensitivity (nominal): 3mV (suitable for cartridges giving 1.5mV or more including high output MC types)
Signal / noise ratio: >70dB ‘A’-weighted
Input impedance: 50k Ohms
Frequency response: RIAA/IEC ±1dB, 20Hz to 20 kHz

General
Dimensions – WxHxD (mm): 440 x 100 x 400
Weight (unpacked / packed): 9.2 kg/ 13 kg
