VPI Avenger

Giradischi Trazione a cinghia Serie Avenger.

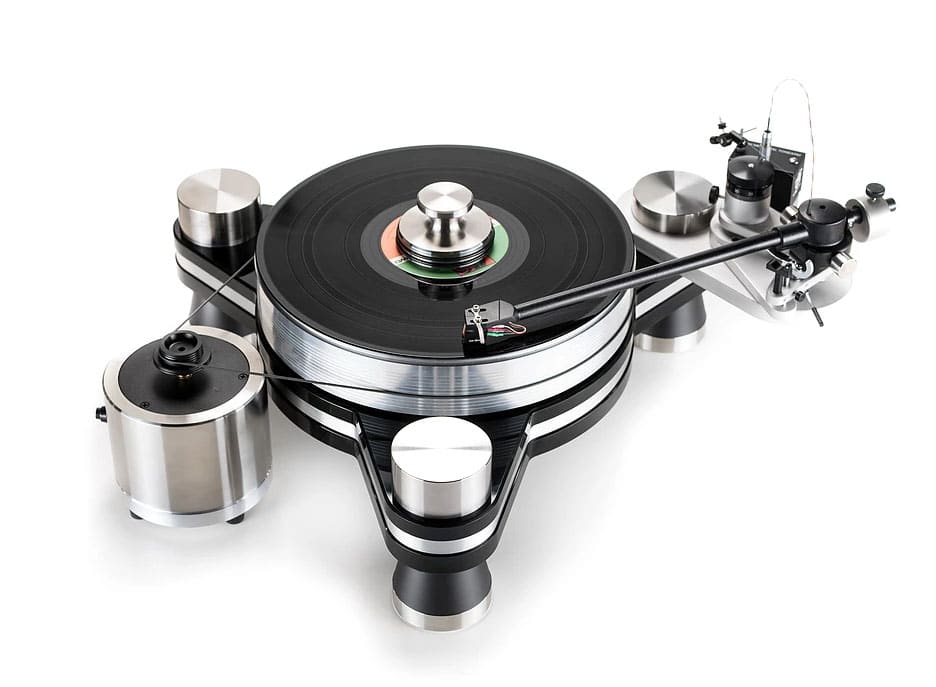

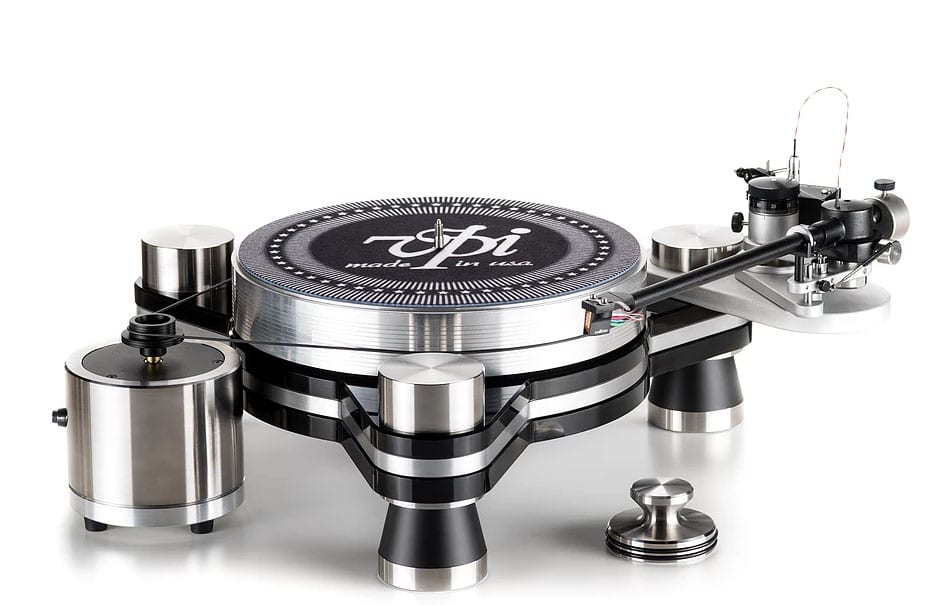

Giradischi completo di braccio JWM10 3D da 10,5″ premontato. Trazione a cinghia. Piatto in alluminio da 5cm di spessore e 10Kg di peso. Chassis a tripla laminatura: acrilico/alluminio/acrilico. Sistema di sospensione su 3 piedini di isolamento derivati da HR-X. Motore estremamente preciso separato dallo chassis. HR-X clamp. Velocità 33/45 giri.


The VPI Avenger and a Tale of Three Tables - Part 1

Categoria: Tag:


The Table:

  • The Avenger chassis is three layers of bonded acrylic/aluminum/acrylic with damping material between layers.

  • 3 stainless steel corner posts for both isolation and tonearm mounting and for mechanical grounding (up to 3 will fit).

  • The 300 RPM, 24 pole, AC synchronous motor is capable of high torque and quiet operation. The motor is installed in a separate aluminum and steel machined assembly

  • The Inverted bearing features a hardened stainless steel shaft, 60 Rockwell chrome hardened ball, spinning in a phosphor bronze bushing and sits on a PEEK thrust disc.  The belt side load is placed at the center of the spinning bearing for zero teeter-totter effects

  • The 20 pound 6061 aluminum platter has an accuracy of +/- .001” in a 39” circumference

  • The motor pulley has an accuracy of +/- .0005” when leaving factory

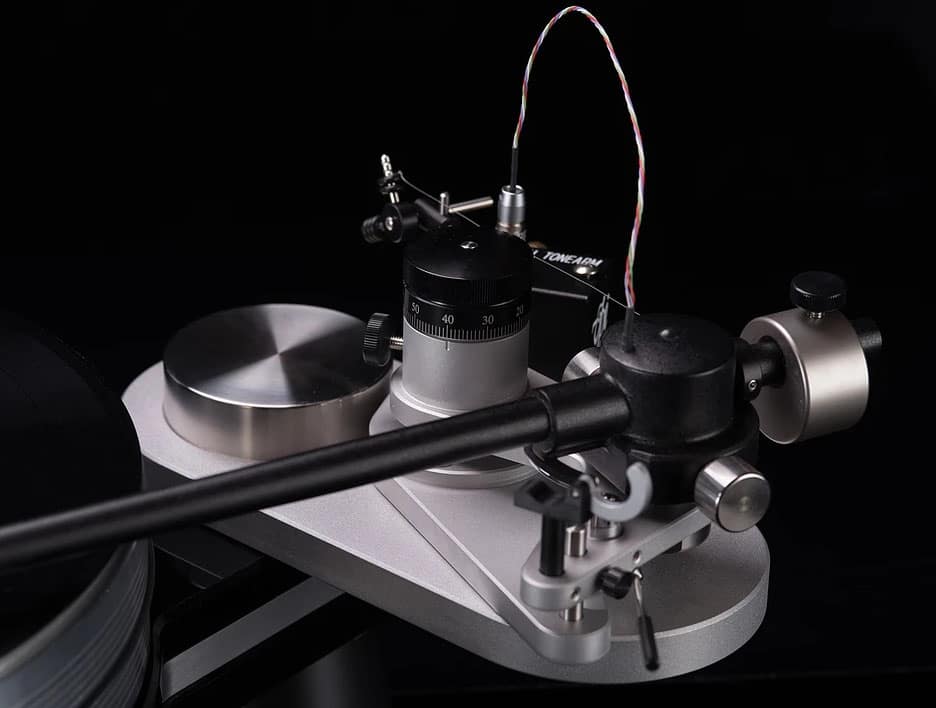

  • JMW 12-3D with VPI pure copper wire


  • Wow and flutter:  .03%

  • Speed Accuracy:   .04%

  • Rumble: 82db down

  • Overall Dimensions 27″ x 23″ x 10″

  • Footprint is 23″ x 20″

  • 87 lbs packing weight

Available Upgrades:

  • Periphery Ring clamp for the ultimate in record warp reduction

  • Analog Drive System (ADS) for the utmost accuracy in motor speed and fine speed adjustments.

  • Avenger Rim-Drive

  • Avenger Reference Magnetic Drive

  • Avenger Reference Feet

  • JMW-12-3DR

  • Additional JMW Tonearms

  • Additional Arm boards for third party arms
