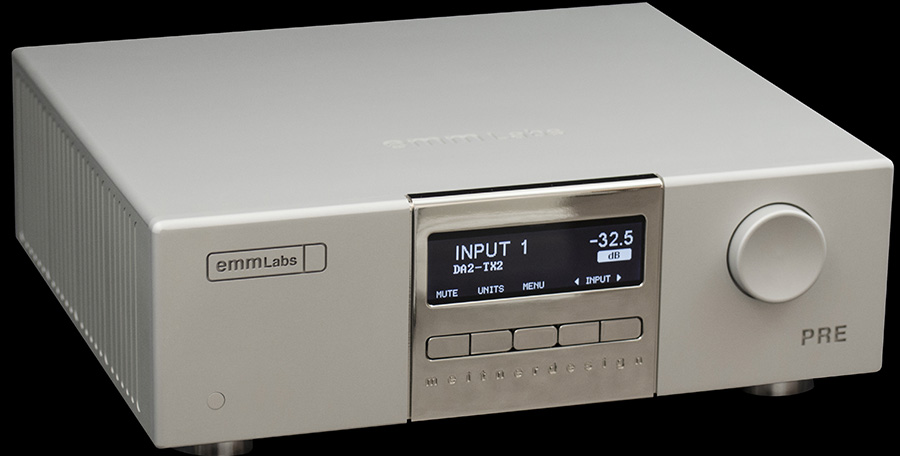

EMM Labs – PRE Preamplifier

Preamplificatore stereo di riferimento, 3 ingressi bilanciati XLR, 3 ingressi single ended RCA, 2 uscite bilanciate XLR, 1 uscita single ended RCA, Classe A, percorsi di segnale bilanciati discreti, circuiti stampati di grado aerospaziale, porta seriale RS232 per controllo remoto cablato e controllo multisistema.
Dimensioni (LxAxP): 438x161x400mm, peso 17,2kg.

Recensione DAGOGO

Recensione NOVO HIEND



Technical Specifications:

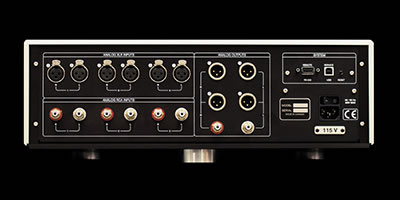

  • Six Stereo Analog Inputs: Three Balanced (XLR), Three Single-ended (RCA)
  • Three Stereo Analog Outputs: Two Balanced (XLR), One Single-ended (RCA)
  • Fully discrete dual-balanced signal paths
  • Class A circuitry to drive loads without degradation
  • Precision software-based analog volume control
  • Aerospace-grade composite laminate circuit boards
  • Machined aluminum infrared remote control

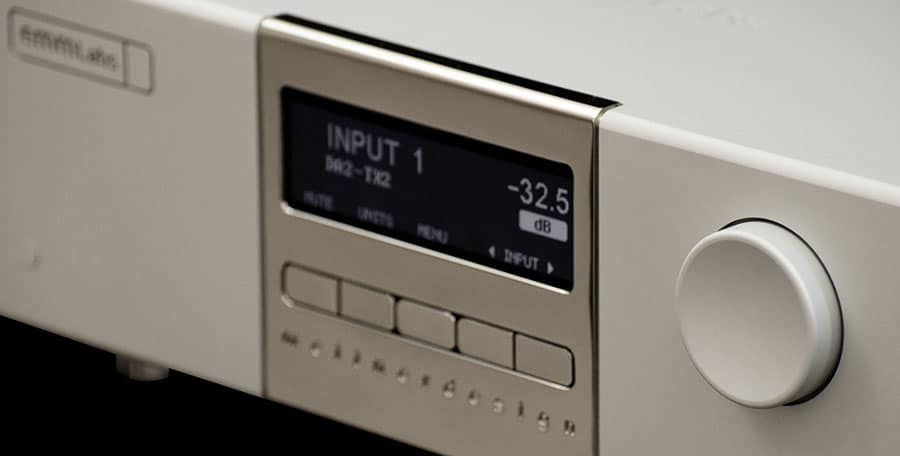

  • Large display with customizable brightness & contrast
  • New intuitive control system featuring programmable input settings & three sets of volume preset per input
  • System USB port for future software updates
  • RS232 port for wired remote & multi-system control
  • CE compliant

Power Supply:
Proprietary High-isolation resonant mode power supply for silent, & eco-friendly operation
Factory set to 100V or 115V or 230V, 50/60Hz
Power consumption: max. 40W

  • S/N ratio: Better than 100 dB at 4V RMS output (unweighted, 80kHz bandwidth)
  • THD: less than 0.004%
  • Frequency range: 0Hz-200kHz
  • Gain control range: Better than 74dB
  • Maximum input level: +18 dBu (6.2V RMS)
  • Input impedance: Balanced XLR – 40kΩ, Single-Ended RCA – 20kΩ
  • Output impedance: Balanced XLR – 150Ω, Single-Ended RCA – 75Ω
  • System gain: +6dB
  • Finish: Silver or Black with Black insert and buttons. Premium custom plated options available.
  • Dimensions W x D x H: 438 x 400 x 161mm
  • Weight: 17.2kg
