Gryphon Diablo 300

Il Gryphon Diablo è un amplificatore integrato duel mono che si conferma un riferimento assoluto nella sua categoria. Probabilmente si tratta dell’amplificatore integrato di fascia alta più popolare di tutti i tempi.
Le incredibili doti musicali, le prestazioni fuori dal comune, la sublime costruzione secondo rigide specifiche militari, le possibilità di espansione tramite i moduli D/A e fono, e la semplicità d’uso, rendono Gryphon Diablo 300 il compagno ideale per ottenere forti emozioni a ogni ascolto, portando l’arte senza tempo della musica con tutte le sue sfumature nella vostra casa.

Recensioni:

http://www.audioreference.it/index.php?page=item&id=733



Descrizione

Features:

  • 2 x 300W (8 Ohm), 2 x 600W (4 Ohm), 2 x 950W (2 Ohm)
  • True Dual Mono configuration
  • Zero negative feedback
  • Microprocessor-controlled 43-step fully balanced relay volume attenuator for best sonic performance based on a minimalist contingent of ultra-precision resistors
  • Ultra-short signal path
  • Minimal internal wiring
  • Military spec. dual-layer and four-layer printed circuit boards with up to 105 micron copper traces
  • Dual Mono Holmgren toroidal transformer with vacuum treated core and windings to virtually eliminate mechanical noise
  • PCB-mounted sockets eliminate wiring and shorten signal path
  • New, high-speed, discrete single-ended Class A input buffer for best possible sonic performance

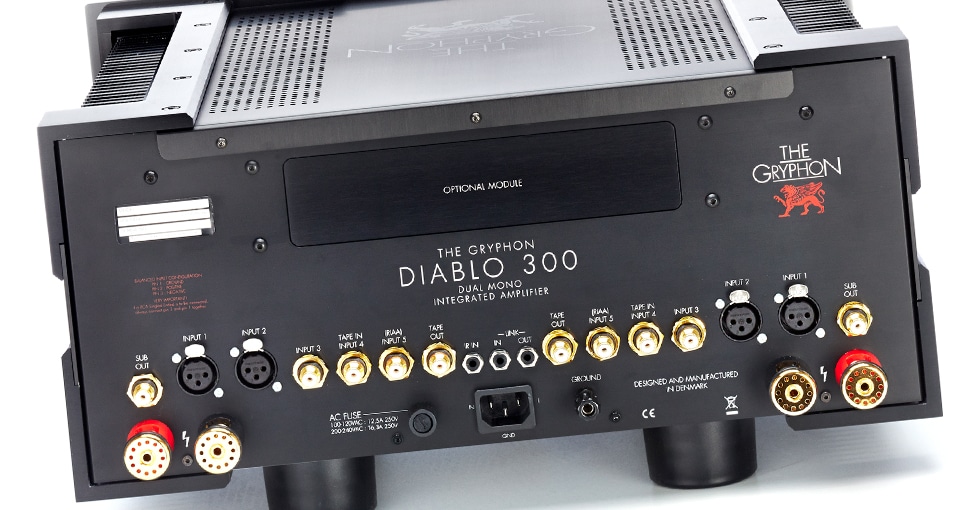

  • Gold-plated Swiss Neutrik XLR sockets for two balanced sources
  • Gold-plated phono sockets with Teflon insulation for 3 inputs and 2 outputs
  • Fixed-level AV throughput for uncompromising integration with surround preamplifier
  • Input level matching to prevent abrupt level changes
  • Large Vacuum Fluorescent Display for easy legibility
  • Adjustable display lighting (100%, 75%, 50%, 25%, Off)
  • Backlit touch-sensitive front panel controls
  • Optional MM/MC phonostage module
  • Optional PCM/DSD DAC module with one USB, 2 x SPDIF, 1 AES and 1 optical input
  • 12V DC link input and output
  • Flash memory upgrades via key fob
  • Local shunt regulators for optimal noise suppression
  • Non-invasive protection system
  • Infrared remote control
  • Input for external iInfrared receiver
  • Standard power consumption: less than 0.5 W, conforming to latest EU standards
  • EU CE approval
  • Designed and built in Denmark



Technical Specifications:

Power Output: 2 x 300W (8 Ohm), 2 x 600W (4 Ohm), 2 x 950W (2 Ohm)
Output Impedance: 0.019 Ohm
Frequency Bandwidth (-3 dB): 0.1 Hz – 350 kHz
Power Supply Capacity: 2 x 68.000 microFarad
Gain: +38 dB
SUB output gain: +12 dB
Input Impedance, balanced (20 Hz – 20 kHz): 40 kOhm
Input Impedance, single-ended (20 Hz – 20 kHz): 20 kOhm
